Sunday, April 7, 2013

Tectonic Movement ....

At the core of it, my layout is basically N-Trak.  I've modified the N-Trak ideals to fit my needs, of course, and I'm sure would be appalled with what I've done.  But it fits my situation.  With N-Trak, although you are creating separate dioramas that are put together to build a complete layout, you really have often wildly disconnected scenes.  You can have a mountain in one module right next to another module that has an oceanside pier.  Or a city that ends abruptly next to a farm.  All of it is at the whim of the club members who choose their own module designs, and then the uncertainty of who will decide to attend which show.

I wasn't making all of this as part of a club; it's just for me.  So I wanted to do something different with the transitions.  Usually, N-Trak units have fiber board or hard board walls on the sides of their modules.  These are painted with images that mesh with the module's design:  low hills and blue skies for a farm module; a city-scape for a downtown layout.  While this works, I don't really like it for my design.  First, I'm no painter.  I used an airbrush fairly well recently, but my artwork would be fit quite nicely in a second grade classroom.  Second, I wanted to integrate the transitions into the scene a little more than N-Trak usually does.

My solution is to create low hills between the scenes.  Each of these will reflect the geographic structure of the area I'm trying to depict, and will have unique features: water falls, rock formations, timbered hills, and the like.  This might require a bit more work (especially with Hydrocal!), but I believe that visually it will be more pleasing.

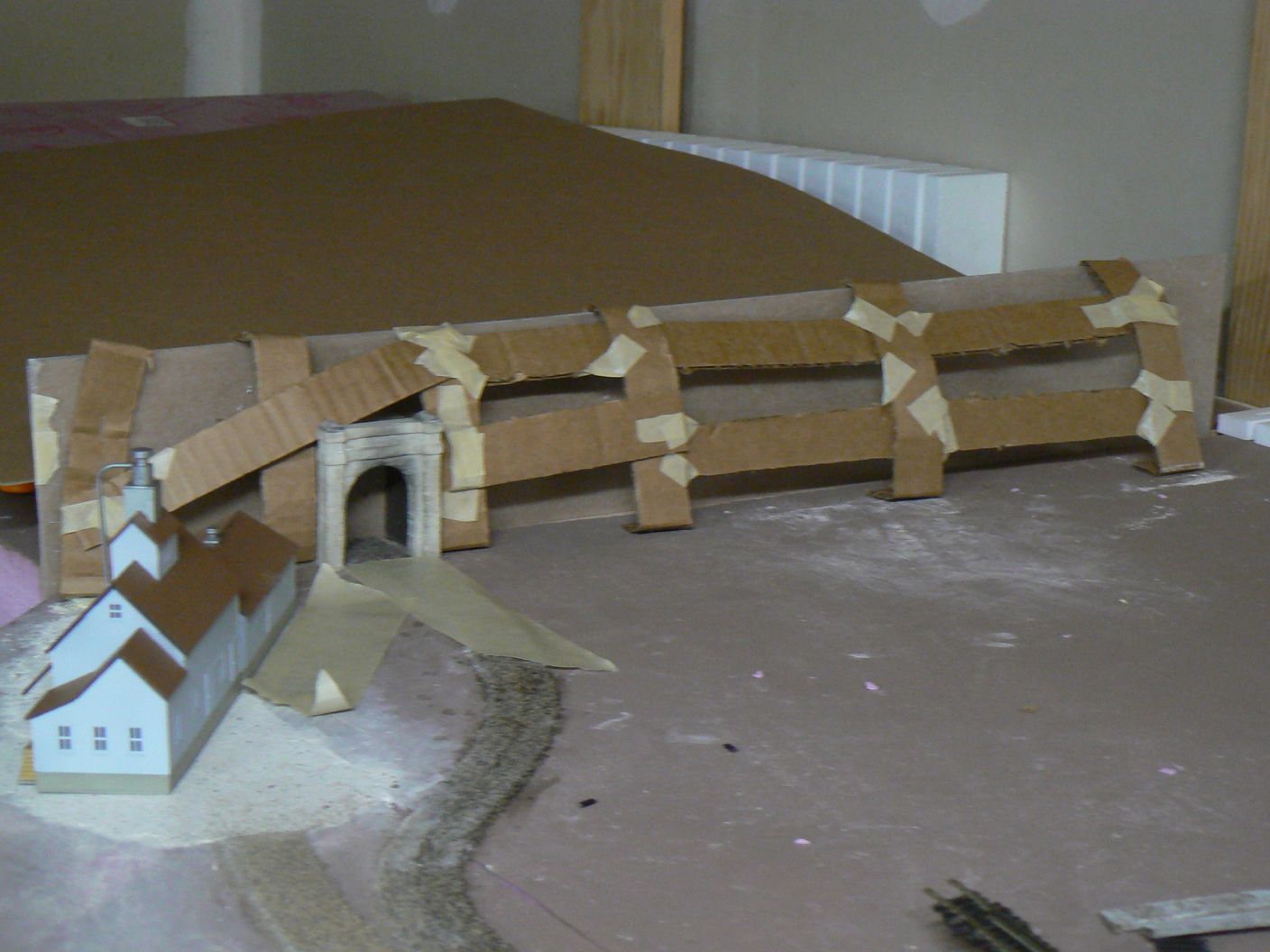

In the picture above you see the cardboard webbing that will support the Hydrocal-soaked paper towels to form the hill.  This is the left side of Module 2.  It's a ranching scene with cattle pens.  There is also a highway (or what used to be called a highway before Eisenhower started up the super highway program in the '50s), a feed mill, and a mainline that breaks off into two tracks, along with two separate turnouts; one for the cattle pens and one for the feed mill.  I'm going to have a farm road, too, that will cross the tracks to reach the highway.

The webbing is connected to a cardboard wall at the very left edge of the module that will be removed once the Hydrocal is dry and hard.  Adding some degree of difficulty is the railroad tunnel that will provide access from this module to the next.  This is a major point in the building of this layout.  I've been thinking about creating this large layout in my garage for years.  I've planned out most of it, right down to some of the smallest details.  For many reasons I haven't been able to work on it very much, and when I could it took a lot of time to work out a number of problems and build the base.  Gluing some cork or building and painting a model is one thing.  This geographic structure -- to me, at least -- is something much bigger.  It's a signal that I'm really going forward with the project.  And that's a little scary.

You probably can see that I glued the cork roadbed.  I did some sanding of the roadbed as it meets up with the Mold-a-Scene patch underneath the feed mill.  I had to use a plastic shim (slightly sanded) to bridge the gap between the end of the sanded cork and the beginning of the trough (which is covered by the wide piece of masking tape.

Another bit of detailing I did was with the tunnel entrance.  I wanted it to retain it's stone look and texture while giving it an old, dirty look.  This is a portal I've had for a while, and over the years it accumulated a lot of dust and dirt.  That was good.  But I needed to give it a light stoney gray color.  After some fits and starts, I decided to color some water with about half a teaspoon of stone coloring from Woodland Scenics and then soak the portal for a few minutes.  The end result wasn't bad, maybe not as dark as I would have liked.  Guess I needed some more of the stone coloring.  To fix this I used some chalks to color parts of the portal to give it a sooty look, as if years of steam engine passage had darkened portions of the arch.  This picture may not be the best representation of it.  I haven't figured out how to manage the macro setting with aperture control.

Next, I raise mountains ....

Tuesday, April 2, 2013

Some Detailing ...

So, with the trough made and the hole cut into the foam I had to deal with the track.  Below you can see that I cut out most of the ties between the rails of the track that would service the trough.  This is a 5-inch straight from Atlas.  I tried doing the same thing with a piece of Peco track and the whole thing fell apart.  You can see that the Atlas ties stay in position even after the center portion of the ties are removed.  Peco couldn't do that.  The straight fits as close to perfect as I can get it, sitting on top of the trough which will be inserted into the cut out in the foam.  Later I painted the foam in the trough with a heavy coat of raw umber and then used some of the dust created by sanding down the Mold-a-Scene to coat the bottom of the painted trough, as if with grain to be milled.  Frankly, I don't think anyone (other than me) is going to see that, but I like that bit of detailing.

With that settled, it was time to work on the mill.

Again, this is the Walthers Sunrise Feed Mill kit in N Scale.  I'm not a great model builder, and I've been having some problems with these kits lately.  What I discovered -- besides my bad eyesight and the fact that I have 10 thumbs -- I don't really like those instant glues; the cyanoacrylate (CA) glues.  They just run like crazy on me and they smudge windows.  So I've really limited my use of such glues.  Instead I've been using Testor's model cement.  This requires that you hold the pieces together for half a minute.  But the glue stays where you place it.  And even after it has set for a while you still have a little wiggle room to square up the model if needed.  Of course the Testor's only works on plastic, so I keep a bottle of CA around for other projects.

While the model was now easy enough to put together, I was disappointed in it.  I don't think a lot of care went into its production, at least for N Scale.  The picture on the box shows supports for the dock roof, but the model does not include any.  Nor are the pictured drain spouts, ladders, and other small building details included.  The chimney is pictured as brick, but the actual piece of plastic is not molded in a brick design; in fact the sides are kind of concave rather than square.

Now, of course, I can add the details with scratch pieces, and I probably will (most of them, at any rate).  And I'll paint the chimney so it's concrete and not brick because it just will be easier, and it fits the type of structure, too.  But the warehouse doors are not made to open, which is really restrictive when putting together a scene.  Someone much better than me could, no doubt, cut those doors away from the model and put other ones in that slide.  I don't have that level of skill.  Another problem was that the model actual broke as I was holding a couple of pieces together as the glue dried.  You can see a crack where I had to glue the wall pieces back together just under the unsliding warehouse door in the concrete base.  I really wasn't squeezing that hard.

For the first time I used an airbrush.  Couple of problems occurred but all-in-all it turned out fairly well.  I've got some mistakes to take care of, some little places I missed, and then some weathering to do.  The model should be ready by the time I'm ready to set it in place.

Before that, though, come the hill building and then the cattle pen projects.

More on that soon ...
